Understanding YSlow – A Firebug Extension to Analyze and Improve Webpage Performance

Yahoo’s YSlow is a ‘must have’ Firefox add-on and is an extension (for performance) to the Firebug tool. YSlow analyzes web pages and suggests ways to improve the performance of web pages based on a set of rules for high performance web pages laid out by Yahoo. There are 34 rules laid out by Yahoo and YSlow is capable of testing 22 of them.

The 22 rules testable by YSlow and as listed in the YSlow user guide, are:

  1. Minimize HTTP Requests
  2. Use a Content Delivery Network
  3. Add an Expires or a Cache-Control Header
  4. Gzip Components
  5. Put StyleSheets at the Top
  6. Put Scripts at the Bottom
  7. Avoid CSS Expressions
  8. Make JavaScript and CSS External
  9. Reduce DNS Lookups
  10. Minify JavaScript and CSS
  11. Avoid Redirects
  12. Remove Duplicate Scripts
  13. Configure ETags
  14. Make AJAX Cacheable
  15. Use GET for AJAX Requests
  16. Reduce the Number of DOM Elements
  17. No 404s
  18. Reduce Cookie Size
  19. Use Cookie-Free Domains for Components
  20. Avoid Filters
  21. Do Not Scale Images in HTML
  22. Make favicon.ico Small and Cacheable

Assuming you have downloaded YSlow and installed it in Firefox, let us quickly run the YSlow tool on a website and then dissect the results to understand the tool better. Once installed, the YSlow tool can be invoked from Firefox. Just open your web page in Firefox and click the YSlow tool (lower right corner of the Firefox status bar). Here are the results of running YSlow on a sample webpage from my site.


As you can observe, the results consists of 4 Tabs – Grade, Components, Statistics and Tools. The screenshot also shows the rulesets applied as well as the the Grade received by the website. Let us understand these terms one by one.

Rulesets

Let us first understand the rulesets that YSlow uses to grade pages (we will understand grading shortly). There are 3 predefined rulesets that you can choose to apply on a webpage:

YSlow(V2) - This ruleset contains the 22 rules listed in the beginning of this article.

Classic (V1) - This ruleset contains rules from 1 to 13.

Small Site or Blog - This ruleset contains 14 rules that are applicable to
small websites or blogs. These are Rule 1, 4, 5, 6, 7, 9, 10, 11, 12, 16, 17, 20, 21 and 22.

In addition to these rulesets, you can also create your own set of rules. For more information on creating custom set of rules, read Customizing Rulesets.

Grade

‘Grade’ is one of the four tabs as shown below and depicts a report card on our page’s performance.

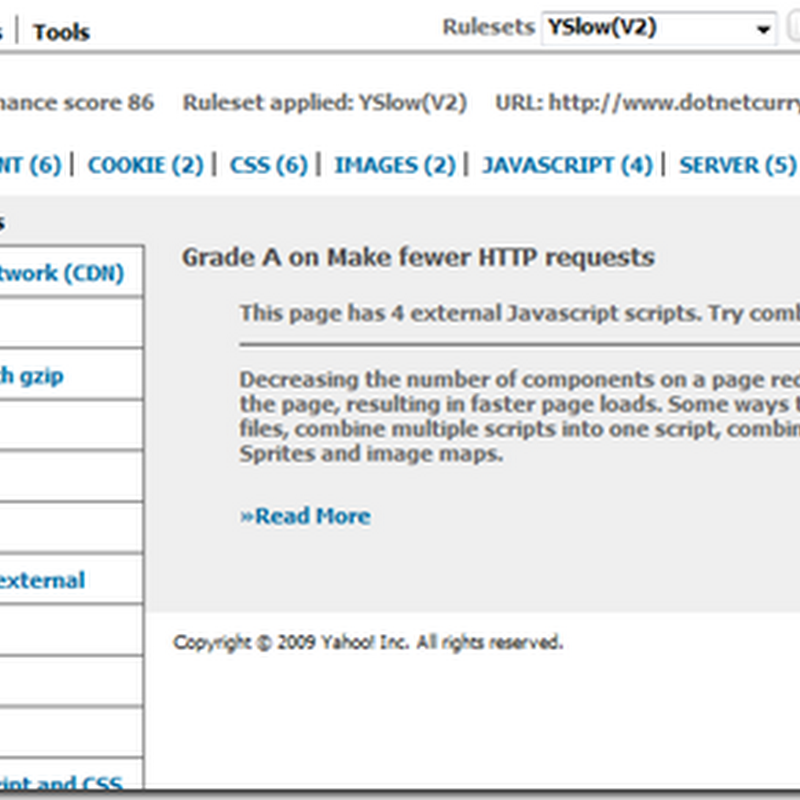

YSlow examines all the components of a webpage and then grades the web page based on one of three predefined ruleset or even a custom-defined ruleset, we discussed about in the Rulesets section. How the grading works, is when YSlow analyzes a webpage, it deducts points for every breach of a rule and then applies a grade to each rule. Here’s a sample screenshot of the grades received by the webpage for each rule and the suggestion for improvement, shown on the right.


Then a final grade is computed (in our case ‘B’) by summing up the values of the points gained for each rule, weighted by the rule's importance.

Components

Components is the second of the four tabs as shown below:


The Component tab shows the various components on the page (javascript, css etc) and information related to each component (click the ‘+’ icon or ‘Expand All’ link). This will give you an idea which component takes more time to load and you can consider to gzip it and improve performance.

Statistics

Statistics is the third tab and provides a graphical representation of the number of HTTP requests made to the server and the total weight of the page in kilobytes for both Empty Cache and Primed Cache scenarios.


The Empty Cache scenario is when the browser makes the first request to the page and the Primed Cache scenario is when the browser has a cached version of the page. In a Primed Cache scenario, the components are already in the cache, so this will reduce the number of HTTP requests and thereby the weight of the page.

Tools

Tools is the last tab and contains a list of various tools that YSlow suggests to run on the webpage resources (images, JavaScript, CSS) to improve the performance of the page.


With this, I hope this quick guide explained what YSlow is all about and how you can use it to analyze and improve the performance of your web pages. I am going to apply this tool on my web pages and follow the recommendations made by this tool to improve performance. I hope you do the same for your web pages too! You can read more about YSlow in the YSlow User Guide.

Link to Download YSlow



Will you give this article a +1 ? Thanks in advance


About The Author

Suprotim Agarwal
Suprotim Agarwal, ASP.NET Architecture MVP (Microsoft Most Valuable Professional) works as an Architect Consultant and provides consultancy on how to design and develop Web applications.

Suprotim is also the founder and primary contributor to DevCurry, DotNetCurry and SQLServerCurry. He is the Editor of a Developer Magazine called DNC Magazine. He has also written two EBooks 51 Recipes using jQuery with ASP.NET Controls. and The Absolutely Awesome jQuery CookBook

Follow him on twitter @suprotimagarwal
